HGW HYDRAULICS

FS6400-16-16-O-SS-VITON

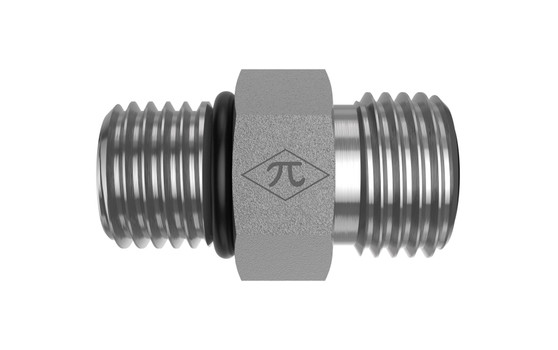

1" Male ORFS × 1-5/16-12 Male ORB · Straight Male Connector

The HGW FS6400-16-16-O-SS-VITON is a straight male connector joining 1" male ORFS to 1-5/16-12 male ORB. Made from stainless steel, it uses SAE J1453 and SAE J1926 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Male Connector
$220.11
(0) Write a Review
SKU:
FS6400-16-16-O-SS-VITON

Product Details

Connection A
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection B
TypeMale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-7/16-12 UN
Size1-5/16-12
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeMale Connector
Weight0.58 lb
Cross References
Aeroquip259-FF1852T1616-213
Parker16 F5OLO-SS FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
