HGW HYDRAULICS

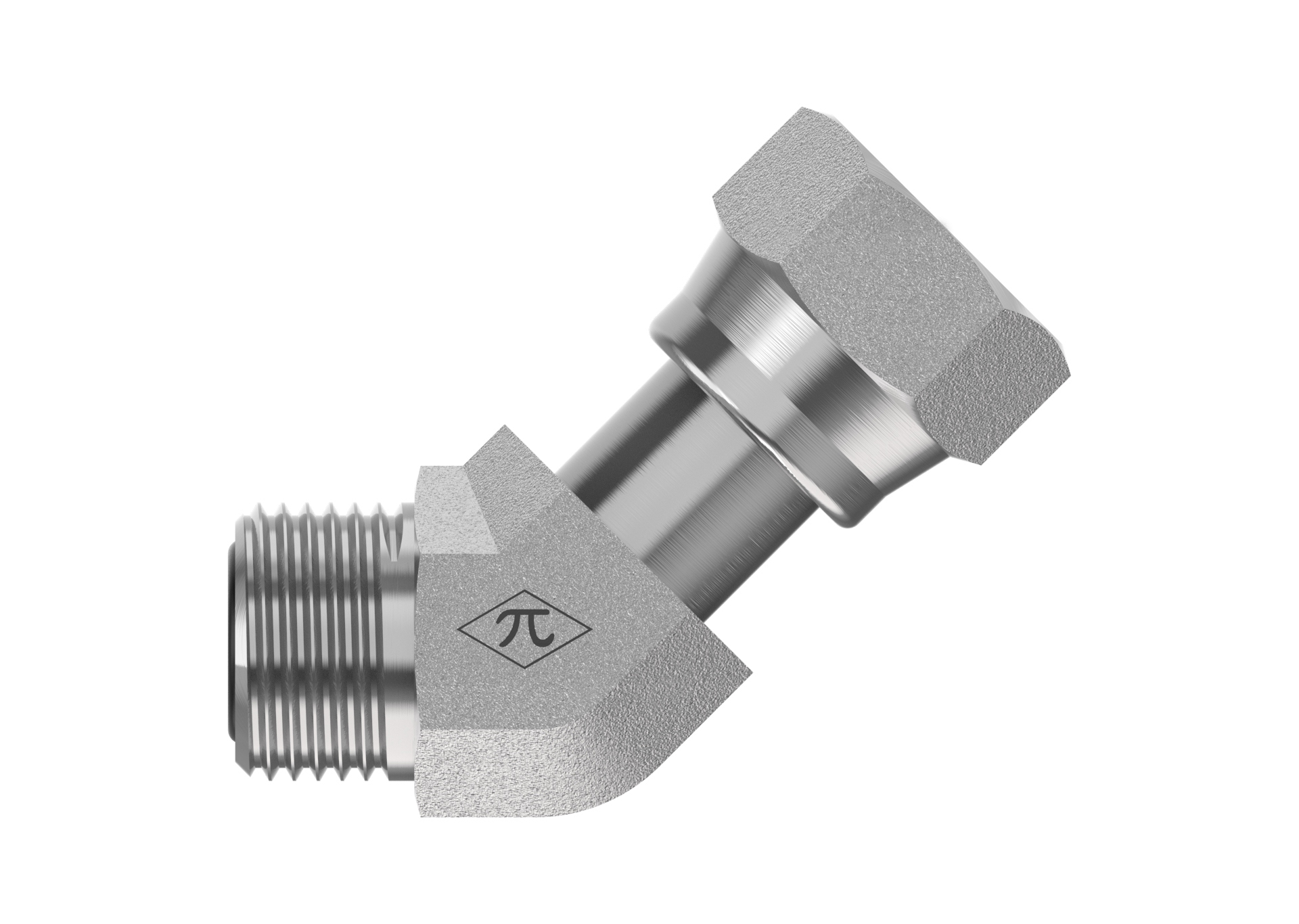

FS6502-06-06-SS

3/8" Male NPTF 30° x 3/8" Female ORFS Swivel

FS6502-06-06-SS is a 3/8" Male NPTF 30° x 3/8" Female ORFS Swivel in the FS6502-FG Series. For connecting a pipe-threaded port to a ORFS-sealed tubes or lines at a 45° angle, with the female swivel end allowing the elbow to be tightened.

  • Stainless Steel
  • Swivel Elbow
  • None
$167.63
(0) Write a Review

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size3/8"
StandardSAE J476
Thread Type11/16-16 UNF
Connection B
TypeFemale ORFS Swivel
Tube OD3/8"
StandardSAE J1453 - O-Ring Face Seal Swivel
Thread Type11/16-16 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Elbow
Weight0.20 lb
PlatingNone
Cross References
Aeroquip259-F2133T0606
Parker6 V6LO-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
