HGW HYDRAULICS

FS6502-08-08-SS

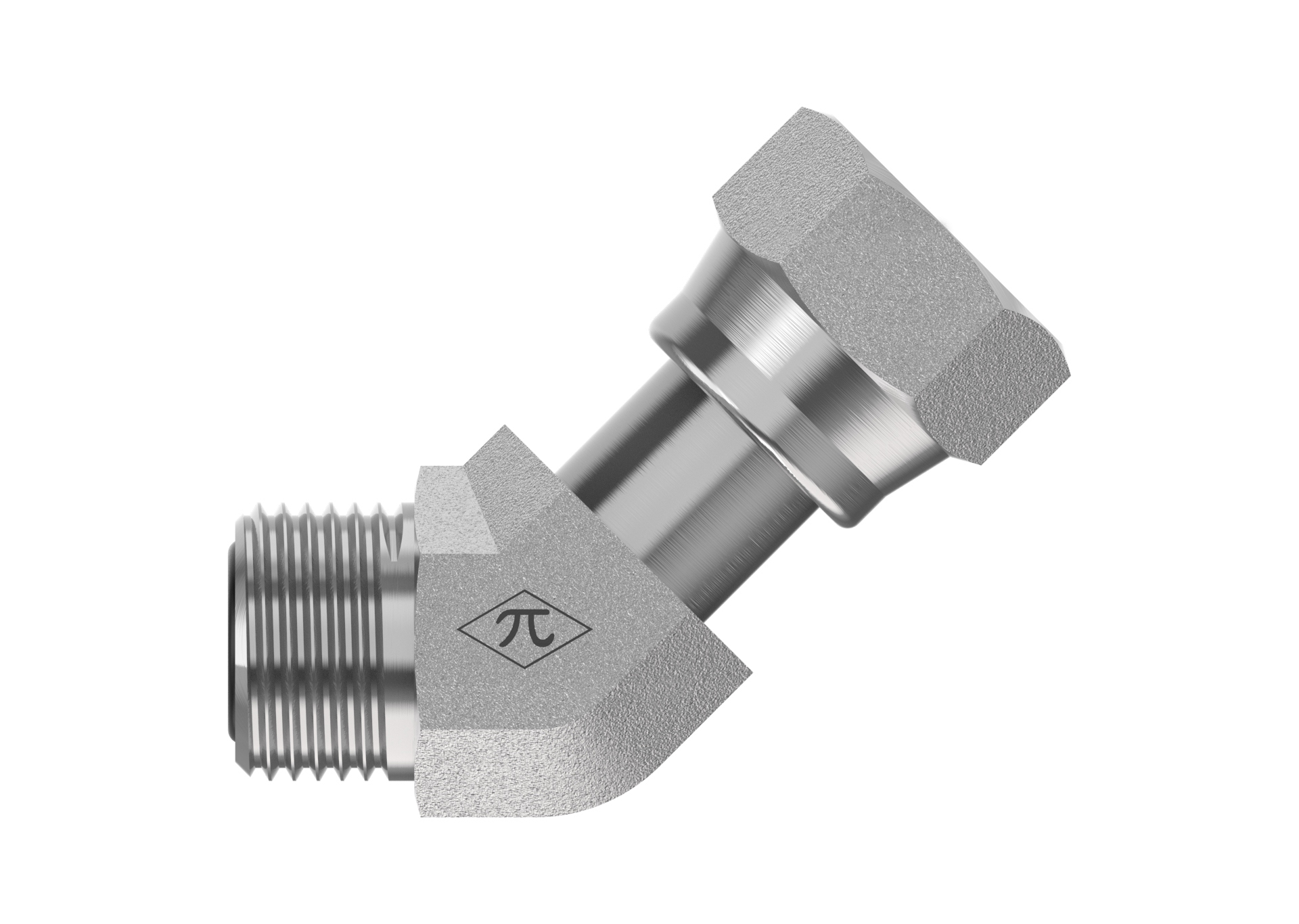

1/2" Male NPTF 30° x 1/2" Female ORFS Swivel

FS6502-08-08-SS is a 1/2" Male NPTF 30° x 1/2" Female ORFS Swivel in the FS6502-FG Series. For connecting a pipe-threaded port to a ORFS-sealed tubes or lines at a 45° angle, with the female swivel end allowing the elbow to be tightened.

  • Stainless Steel
  • Swivel Elbow
  • None
$103.40
(0) Write a Review

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/2"
StandardSAE J476
Thread Type13/16-16 UNF
Connection B
TypeFemale ORFS Swivel
Tube OD1/2"
StandardSAE J1453 - O-Ring Face Seal Swivel
Thread Type13/16-16 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Elbow
Weight0.25 lb
PlatingNone
Cross References
Aeroquip259-F2133T0808
Parker8 V6LO-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
