HGW HYDRAULICS

FS6502-20-20-FG

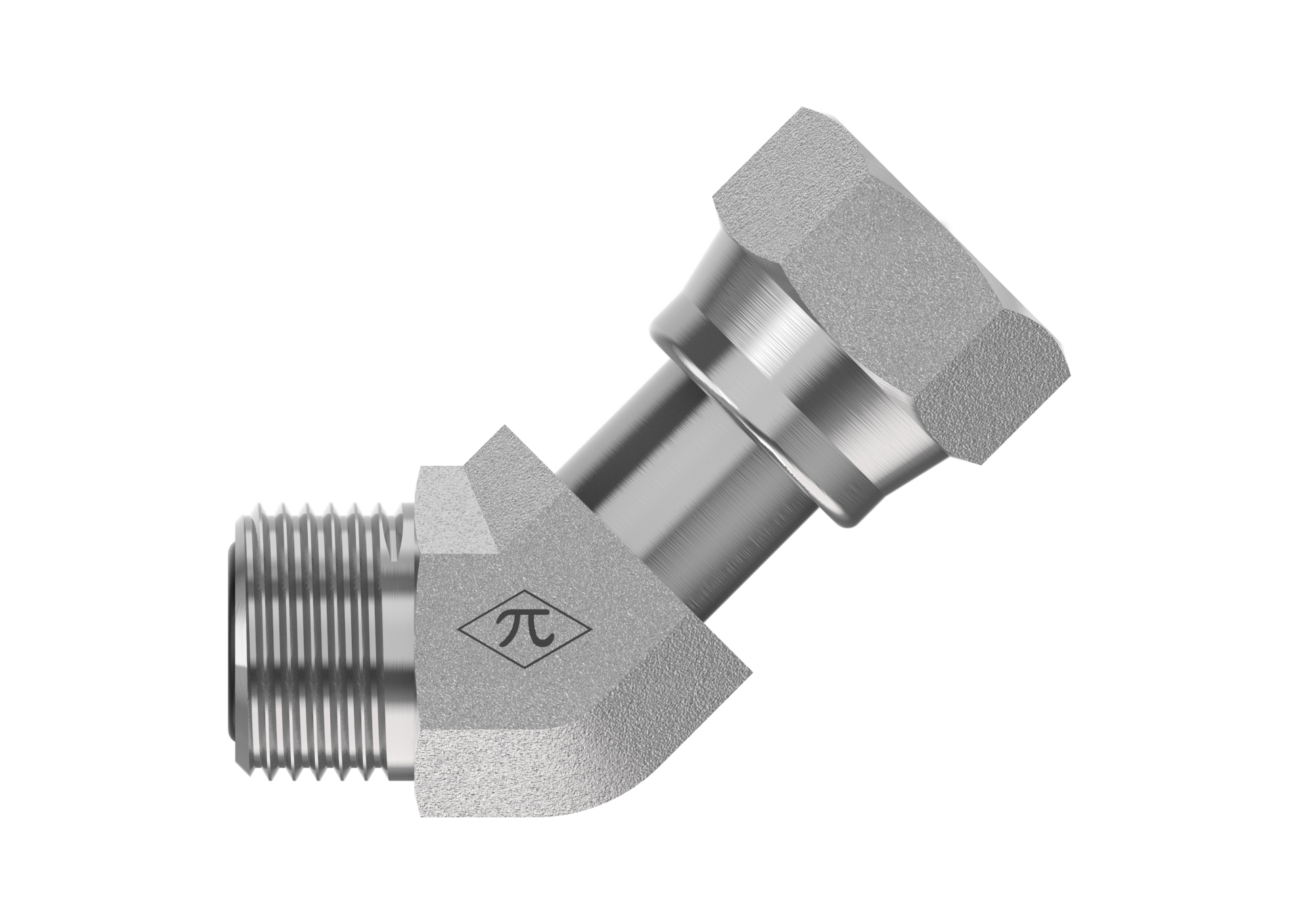

1-1/4" Male NPTF 30° x 1-1/4" Female ORFS Swivel

FS6502-20-20-FG is a 1-1/4" Male NPTF 30° x 1-1/4" Female ORFS Swivel in the FS6502-FG Series. For connecting a pipe-threaded port to a ORFS-sealed tubes or lines at a 45° angle, with the female swivel end allowing the elbow to be tightened.

  • Steel
  • Trivalent Zinc
  • Swivel Elbow
$68.08
(0) Write a Review

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1-1/4"
StandardSAE J476
Thread Type1-11/16-12 UN
Connection B
TypeFemale ORFS Swivel
Tube OD1-1/4"
StandardSAE J1453 - O-Ring Face Seal Swivel
Thread Type1-11/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Elbow
Weight1.26 lb
Cross References
AeroquipFF2133T2020S
Parker20 V6LO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
