HGW HYDRAULICS

FS6503-06-06-FG

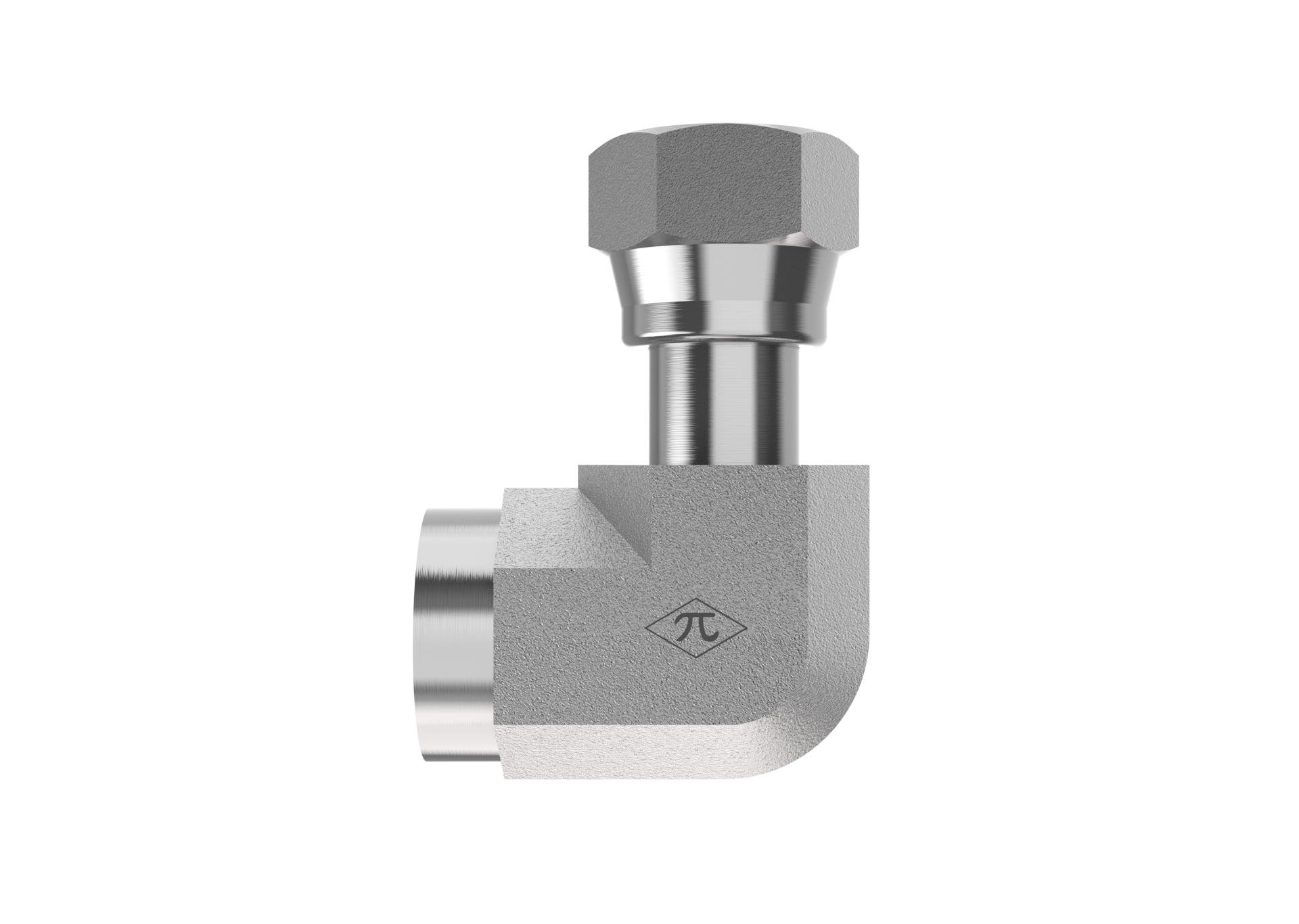

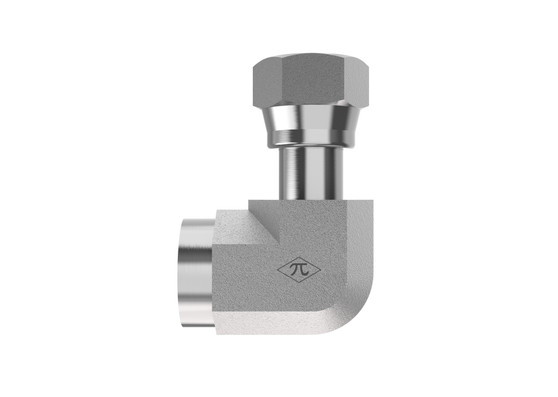

3/8" Female NPTF 30° x 3/8" Female ORFS Swivel

FS6503-06-06-FG is a 3/8" Female NPTF 30° x 3/8" Female ORFS Swivel in the FS6503-FG Series. For connecting a male pipe thread to a ORFS-sealed tubes or lines at a 90° angle, with the female swivel end allowing the elbow to be tightened.

  • Steel
  • Trivalent Zinc
  • Swivel Elbow
$14.49
(0) Write a Review

Product Details

Connection A
TypeFemale NPTF 30°
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection B
TypeFemale ORFS Swivel
Tube OD3/8"
StandardSAE J1453 - O-Ring Face Seal Swivel
Thread Type3/8-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Elbow
Weight0.30 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
