HGW HYDRAULICS

FS6600-04-04-04-SS

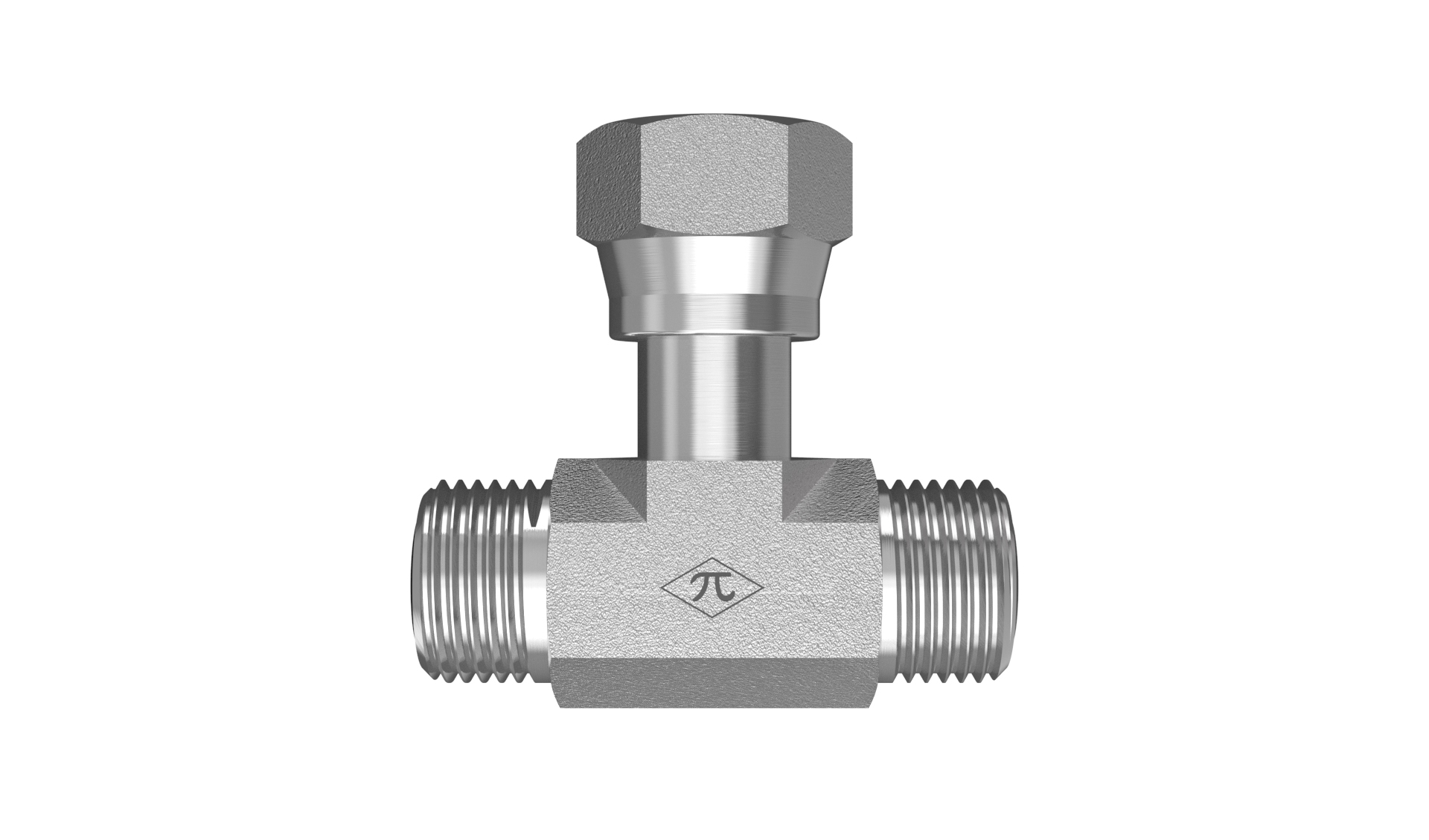

1/4" Male ORFS x 1/4" Male ORFS x 1/4" Female ORFS Swivel

FS6600-04-04-04-SS is a 1/4" Male ORFS x 1/4" Male ORFS x 1/4" Female ORFS Swivel in the FS6600-FG Series. For branching an ORFS-sealed line off two fixed Male ORFS connections.

  • Stainless Steel
  • Swivel Branch Tee
  • None
$117.11
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type9/16-18 UNF
Connection B
TypeMale ORFS
Tube OD1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type9/16-18 UNF
Connection C
TypeFemale ORFS Swivel
Tube OD1/4"
StandardSAE J1453 - Class 2B Thread
Thread Type9/16-18 UNF
Connection D
Specifications
MaterialStainless Steel
ShapeSwivel Branch Tee
Weight0.18 lb
PlatingNone
Cross References
Aeroquip259-FF1857T0404
Parker4 S6LO-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
