HGW HYDRAULICS

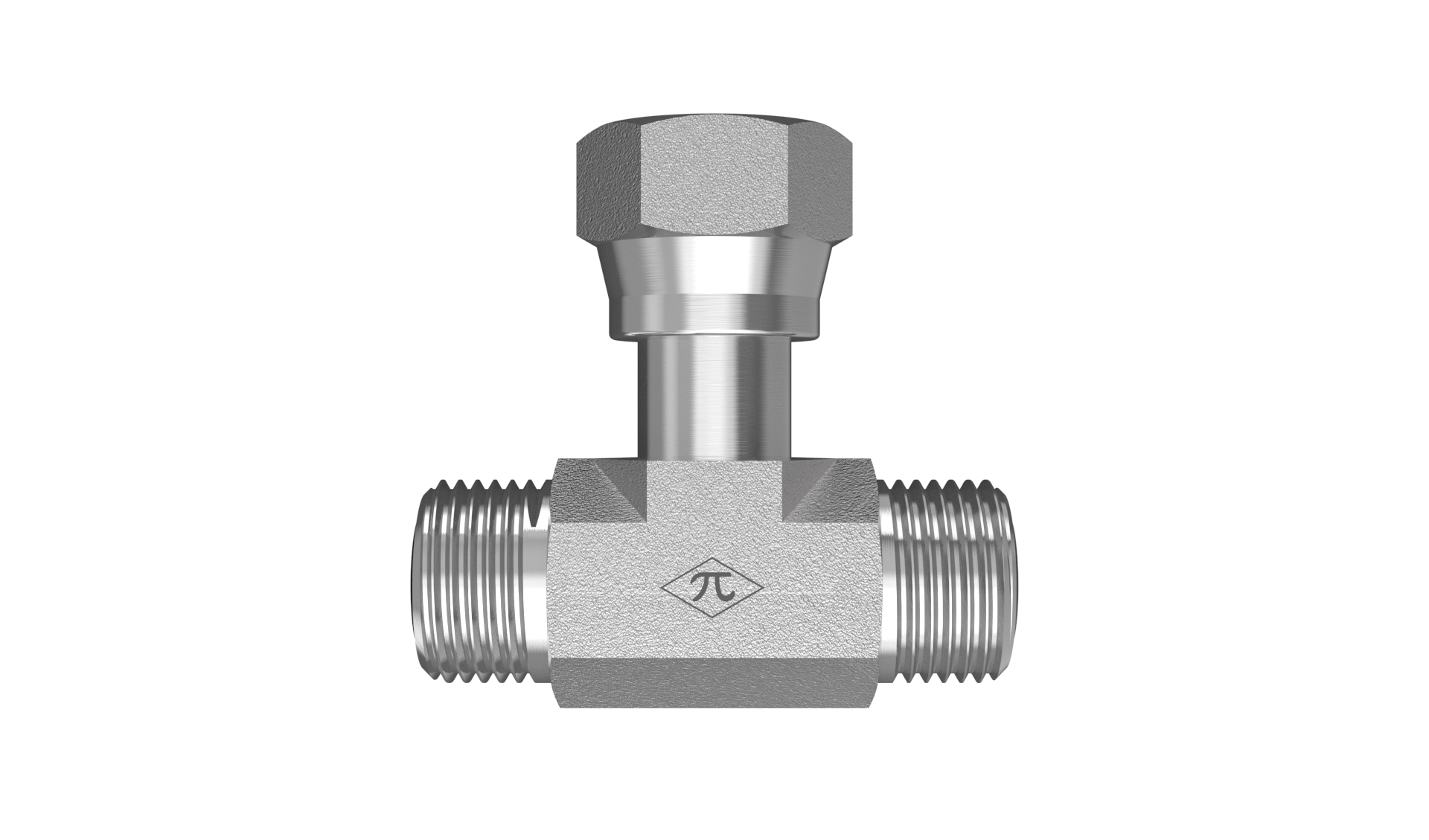

FS6600-04-04-06-FG

1/4" Male ORFS x 1/4" Male ORFS x 3/8" Female ORFS Swivel

FS6600-04-04-06-FG is a 1/4" Male ORFS x 1/4" Male ORFS x 3/8" Female ORFS Swivel in the FS6600-FG Series. For branching an ORFS-sealed line off two fixed Male ORFS connections.

  • Steel
  • Trivalent Zinc
  • Swivel Branch Tee
$15.31
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type9/16-18 UNF
Connection B
TypeMale ORFS
Tube OD1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type9/16-18 UNF
Connection C
TypeFemale ORFS Swivel
Tube OD3/8"
StandardSAE J1453 - Class 2B Thread
Thread Type9/16-18 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Branch Tee
Weight0.18 lb
Cross References
AeroquipFF1857T0406S
Parker4-4-6 S6LO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
