HGW HYDRAULICS

FS6600-12-12-12-FG

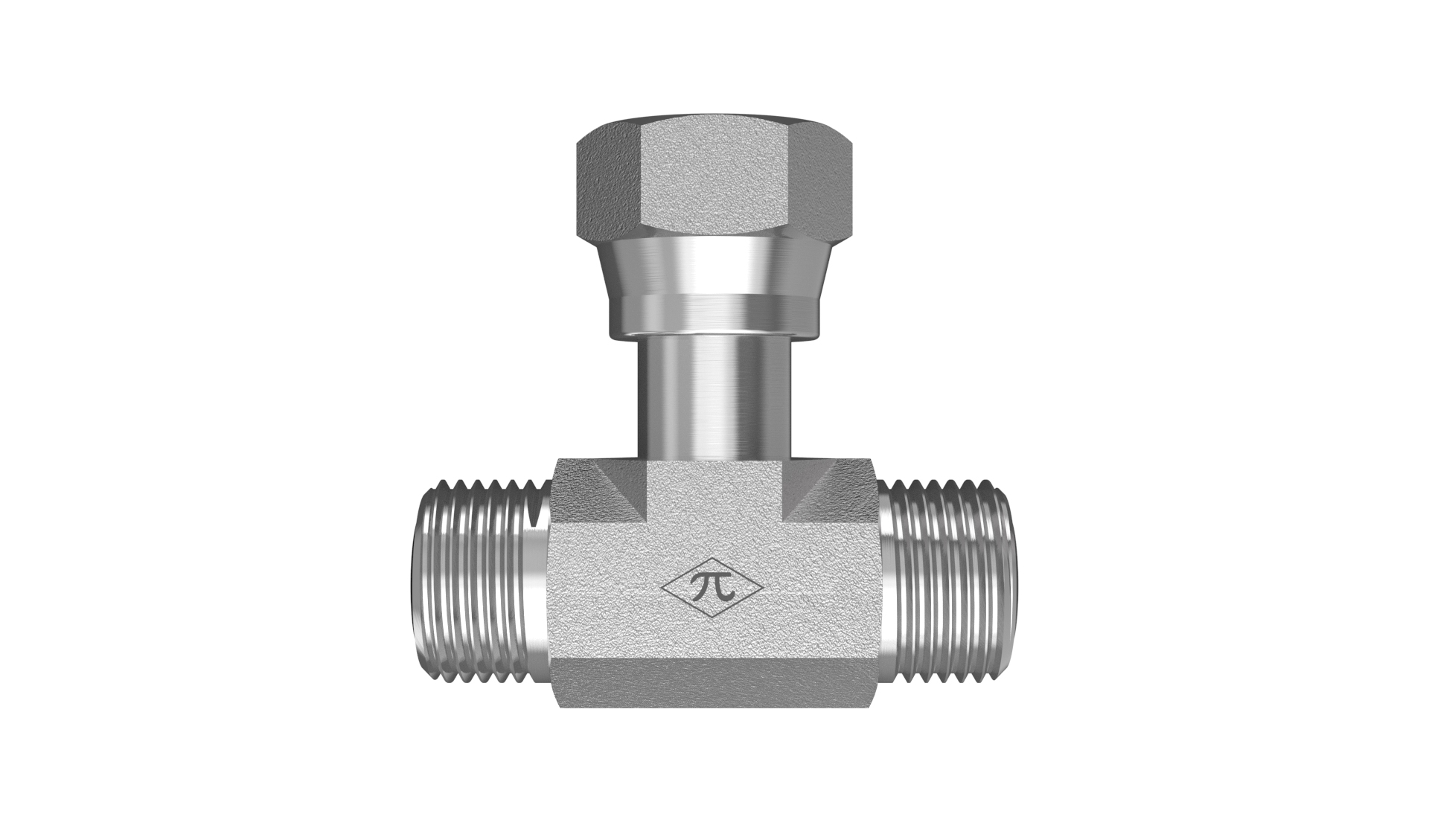

3/4" Male ORFS x 3/4" Male ORFS x 3/4" Female ORFS Swivel

FS6600-12-12-12-FG is a 3/4" Male ORFS x 3/4" Male ORFS x 3/4" Female ORFS Swivel in the FS6600-FG Series. For branching an ORFS-sealed line off two fixed Male ORFS connections.

  • Steel
  • Trivalent Zinc
  • Swivel Branch Tee
$23.81
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-3/16-12 UN
Connection B
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-3/16-12 UN
Connection C
TypeFemale ORFS Swivel
Tube OD3/4"
StandardSAE J1453 - Class 2B Thread
Thread Type1-3/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Branch Tee
Weight1.01 lb
Cross References
AeroquipFF1857T1212S
Parker12 S6LO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
