HGW HYDRAULICS

FS6600-20-20-20-FG

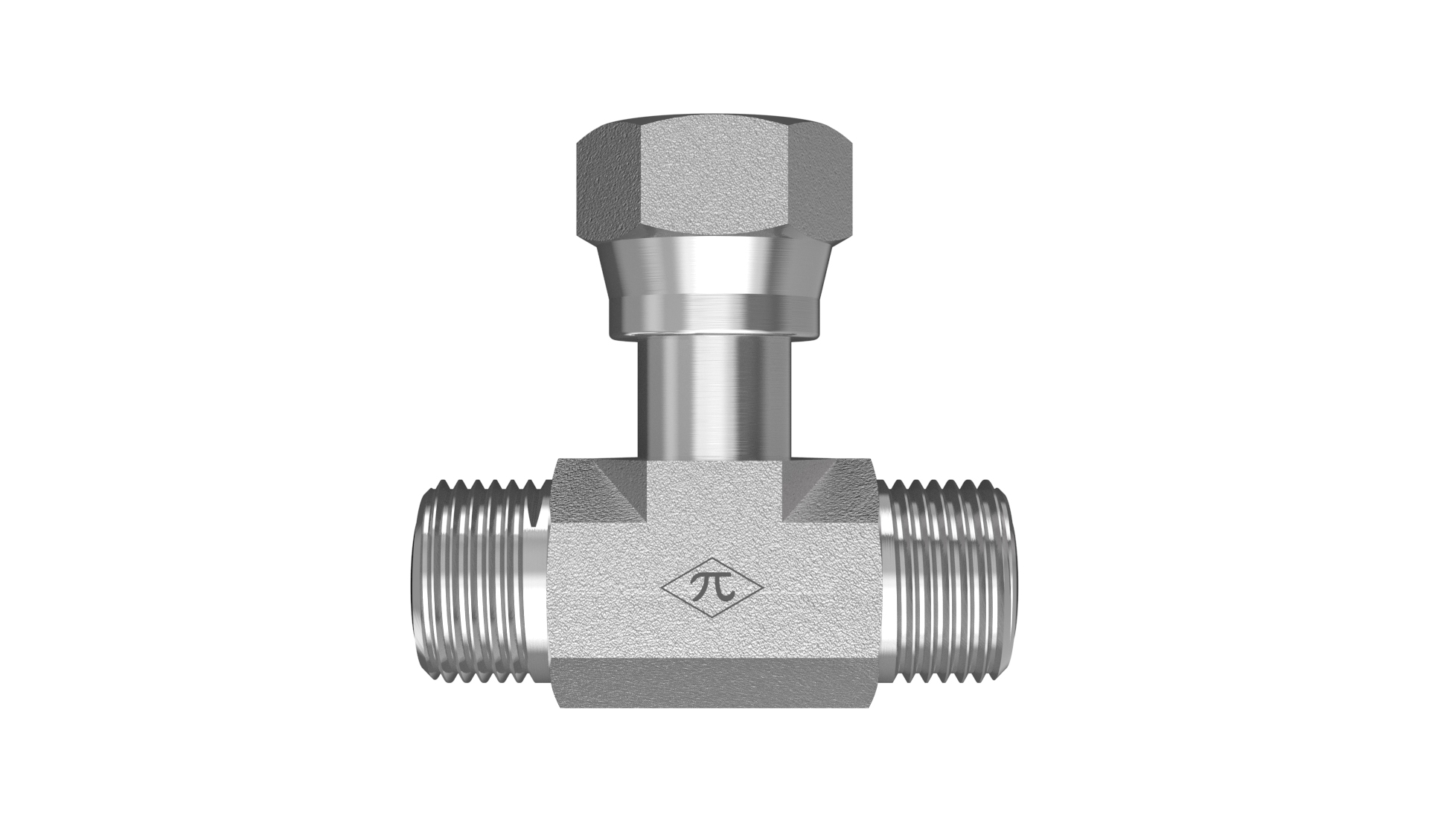

1-1/4" Male ORFS x 1-1/4" Male ORFS x 1-1/4" Female ORFS Swivel

FS6600-20-20-20-FG is a 1-1/4" Male ORFS x 1-1/4" Male ORFS x 1-1/4" Female ORFS Swivel in the FS6600-FG Series. For branching an ORFS-sealed line off two fixed Male ORFS connections.

  • Steel
  • Trivalent Zinc
  • Swivel Branch Tee
$54.76
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1-1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-11/16-12 UN
Connection B
TypeMale ORFS
Tube OD1-1/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-11/16-12 UN
Connection C
TypeFemale ORFS Swivel
Tube OD1-1/4"
StandardSAE J1453 - Class 2B Thread
Thread Type1-11/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Branch Tee
Weight1.92 lb
Cross References
AeroquipFF1857T2020S
Parker20 S6LO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
