HGW HYDRAULICS

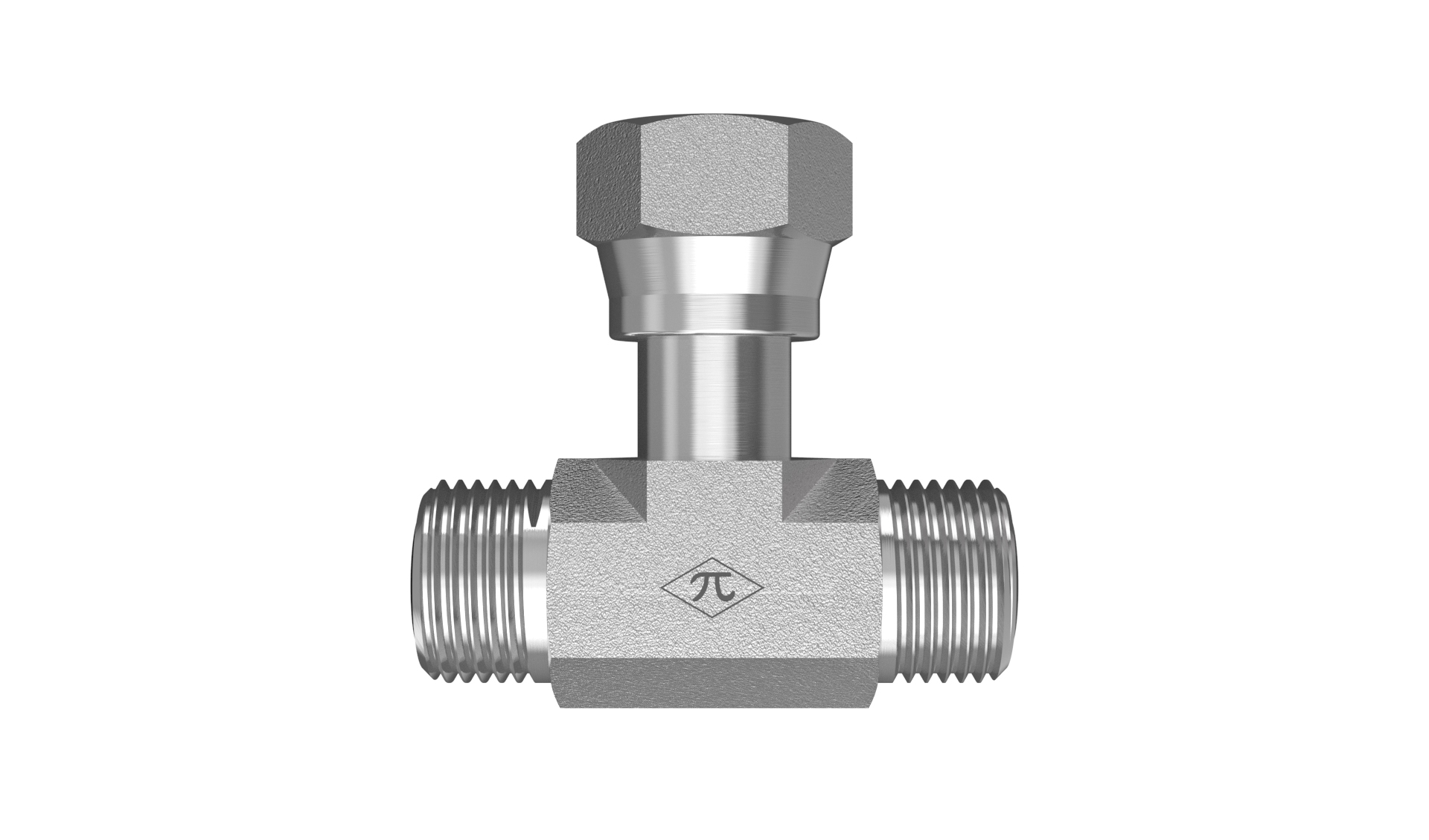

FS6600-24-24-24-FG

1-1/2" Male ORFS x 1-1/2" Male ORFS x 1-1/2" Female ORFS Swivel

FS6600-24-24-24-FG is a 1-1/2" Male ORFS x 1-1/2" Male ORFS x 1-1/2" Female ORFS Swivel in the FS6600-FG Series. For branching an ORFS-sealed line off two fixed Male ORFS connections.

  • Steel
  • Trivalent Zinc
  • Swivel Branch Tee
$165.33
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1-1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type2-12 UNF
Connection B
TypeMale ORFS
Tube OD1-1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type2-12 UNF
Connection C
TypeFemale ORFS Swivel
Tube OD1-1/2"
StandardSAE J1453 - Class 2B Thread
Thread Type2-12 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeSwivel Branch Tee
Weight2.70 lb
Cross References
AeroquipFF1857T2424S
Parker24 S6LO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
