HGW HYDRAULICS

FS6801-08-12-NWO-FG

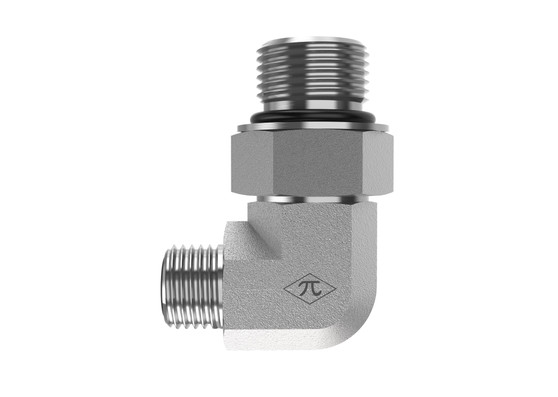

1/2" Male ORFS × 1-1/16-12 Male Adjustable O-Ring Boss · Adjustable Elbow

The HGW FS6801-08-12-NWO-FG is an adjustable elbow joining 1/2" male ORFS to 1-1/16-12 male adjustable o-ring boss. Made from trivalent-zinc-plated steel, it uses SAE J1453 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Adjustable Elbow
$11.24
(0) Write a Review
SKU:
FS6801-08-12-NWO-FG

Product Details

Connection A
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - O-Ring Face Seal
Thread Type13/16-16 UNF
Connection B
TypeMale Adjustable O-Ring Boss
Port Size1-1/16-12
StandardSAE J1453
Thread Type13/16-16 UNF
Size1-1/16-12
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Elbow
Weight0.77 lb
Cross References
AeroquipFF1868T0812S
Parker8-12 C5OLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
