HGW HYDRAULICS

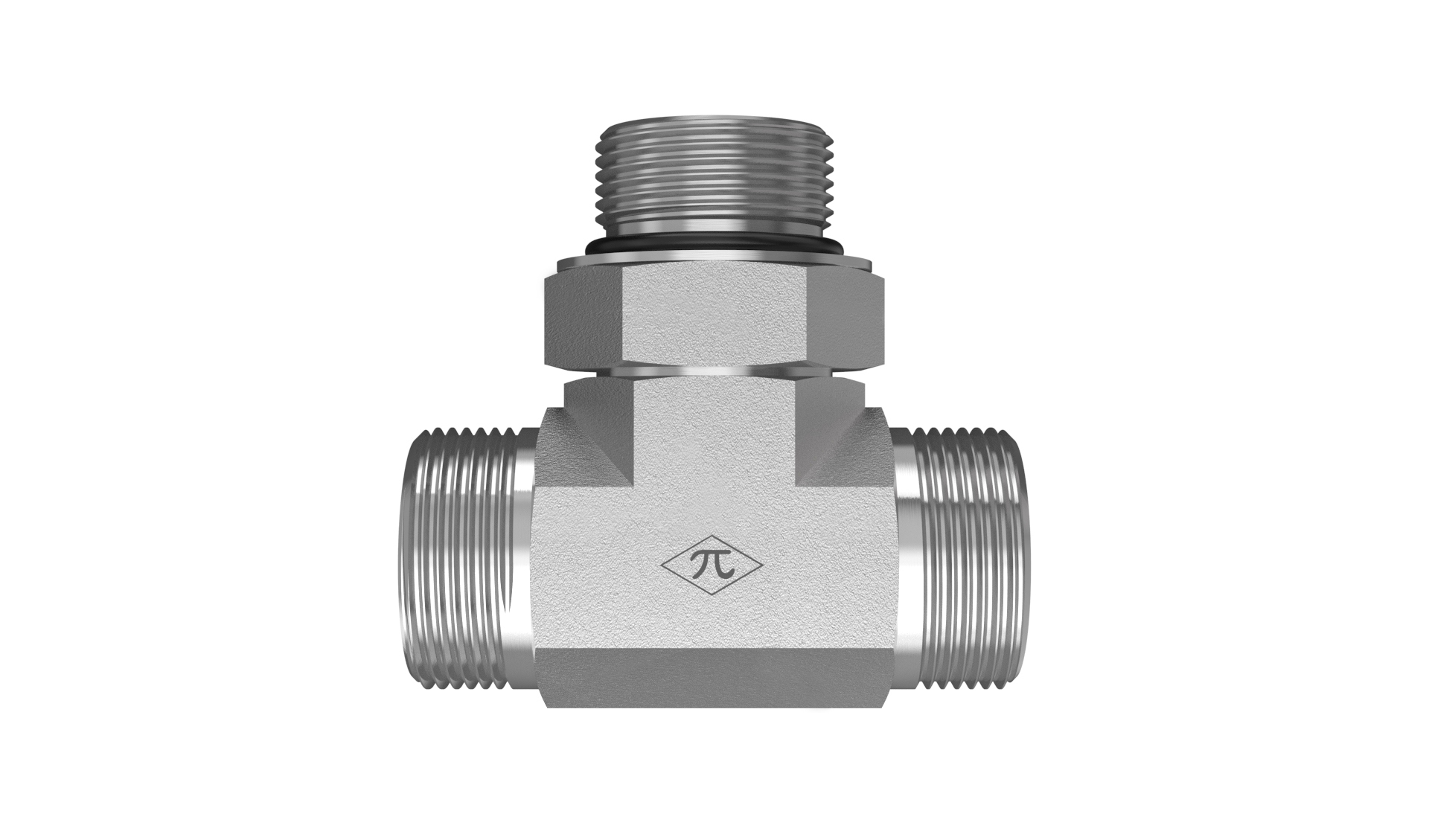

FS6803-06-06-08-NWO-FG

3/8" Male ORFS x 3/8" Male ORFS x 3/4-16 Male Adjustable ORB

FS6803-06-06-08-NWO-FG is a 3/8" Male ORFS x 3/8" Male ORFS x 3/4-16 Male Adjustable ORB in the FS6803-NWO-FG Series. For installing an ORFS-sealed line tee with an SAE J1926 O-ring boss port outlet.

  • Steel
  • Trivalent Zinc
  • Adjustable Branch Tee
$33.54
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD3/8"
StandardSAE J1453 - Class 2A Thread
Thread Type11/16-16 UNF
Connection B
TypeMale ORFS
Tube OD3/8"
StandardSAE J1453 - Class 2A Thread
Thread Type11/16-16 UNF
Connection C
TypeMale Adjustable ORB
Port Size3/4-16
StandardSAE J1926
Thread Type11/16-16 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Branch Tee
Weight0.34 lb
Cross References
AeroquipFF1861T0608S
Parker6-6-8 S5OLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
