HGW HYDRAULICS

FS6803-08-08-12-NWO-FG

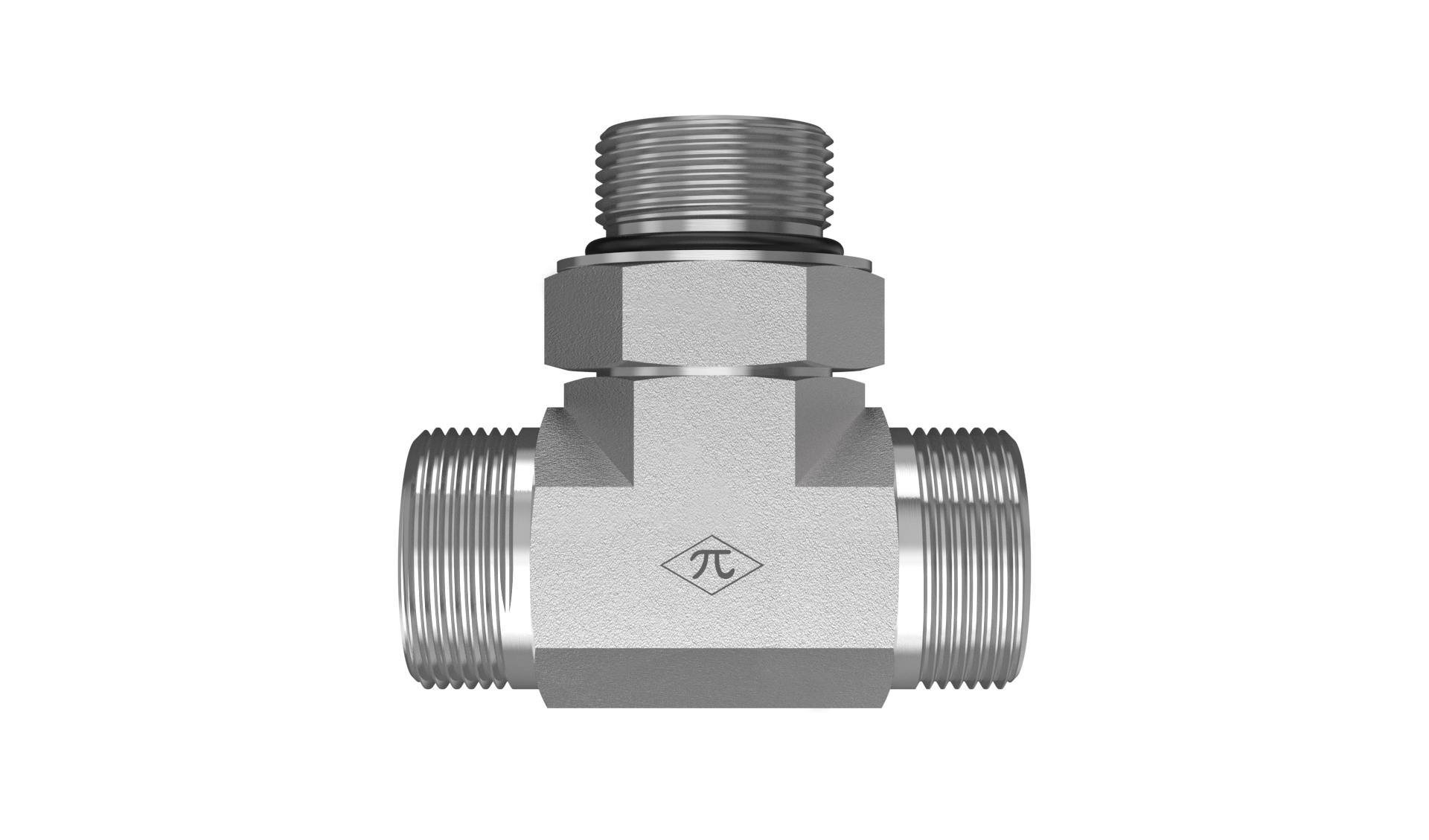

1/2" Male ORFS x 1/2" Male ORFS x 1-1/16-12 Male Adjustable ORB

FS6803-08-08-12-NWO-FG is a 1/2" Male ORFS x 1/2" Male ORFS x 1-1/16-12 Male Adjustable ORB in the FS6803-NWO-FG Series. For installing an ORFS-sealed line tee with an SAE J1926 O-ring boss port outlet.

  • Steel
  • Trivalent Zinc
  • Adjustable Branch Tee
$72.30
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type13/16-16 UNF
Connection B
TypeMale ORFS
Tube OD1/2"
StandardSAE J1453 - Class 2A Thread
Thread Type13/16-16 UNF
Connection C
TypeMale Adjustable ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type13/16-16 UNF
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Branch Tee
Weight0.90 lb
Cross References
AeroquipFF1861T0812S
Parker8-8-12 S5OLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
