HGW HYDRAULICS

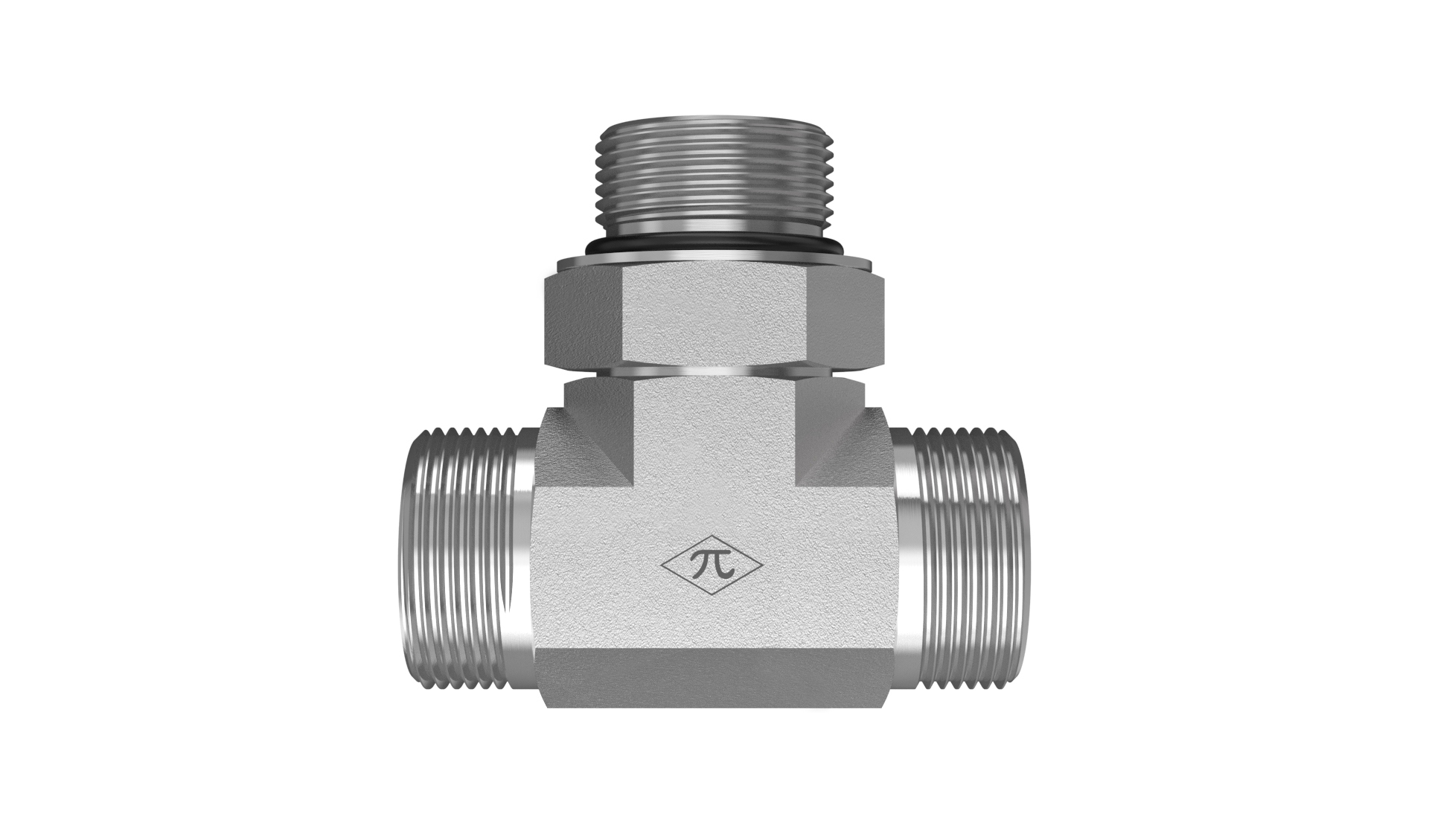

FS6803-10-16-10-NWO-FG

5/8" Male ORFS x 1" Male ORFS x 7/8-14 Male Adjustable ORB

FS6803-10-16-10-NWO-FG is a 5/8" Male ORFS x 1" Male ORFS x 7/8-14 Male Adjustable ORB in the FS6803-NWO-FG Series. For installing an ORFS-sealed line tee with an SAE J1926 O-ring boss port outlet.

  • Steel
  • Trivalent Zinc
  • Adjustable Branch Tee
$129.47
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD5/8"
StandardSAE J1453 - Class 2A Thread
Thread Type1-14 UNS
Connection B
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-14 UNS
Connection C
TypeMale Adjustable ORB
Port Size7/8-14
StandardSAE J1926
Thread Type1-7/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Branch Tee
Weight1.21 lb
Cross References
Parker10-16-10 S5OLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
