HGW HYDRAULICS

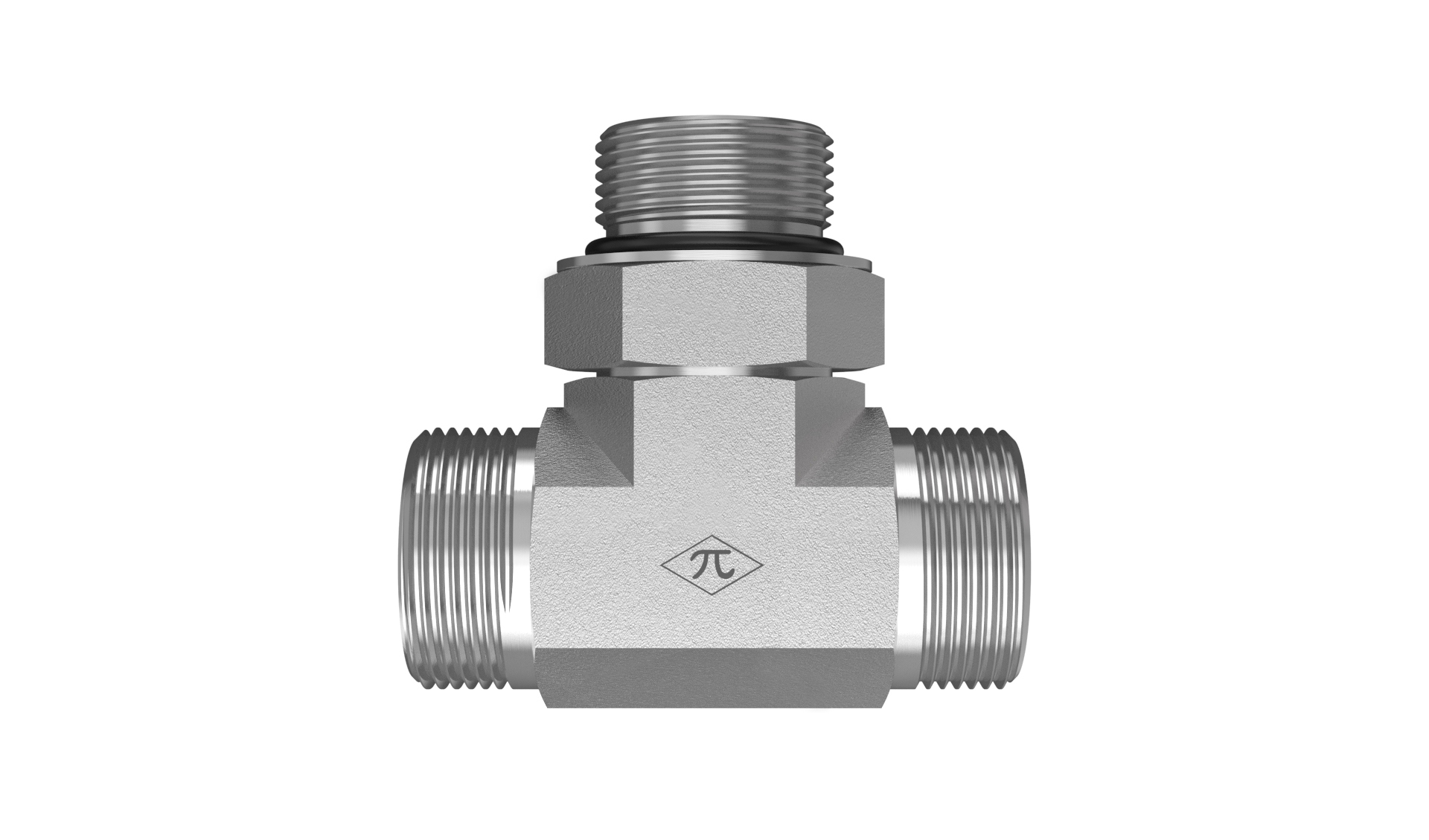

FS6803-12-12-12-NWO-FG-VITON

3/4" Male ORFS x 3/4" Male ORFS x 1-1/16-12 Male Adjustable ORB

FS6803-12-12-12-NWO-FG-VITON is a 3/4" Male ORFS x 3/4" Male ORFS x 1-1/16-12 Male Adjustable ORB in the FS6803-NWO-FG Series. For installing an ORFS-sealed line tee with an SAE J1926 O-ring boss port outlet.

  • Steel
  • Trivalent Zinc
  • Adjustable Branch Tee
$50.00
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-3/16-12 UN
Connection B
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-3/16-12 UN
Connection C
TypeMale Adjustable ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-3/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Branch Tee
Weight1.02 lb
Cross References
AeroquipFF1861T1212-213
Parker12 S5OLO-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
