HGW HYDRAULICS

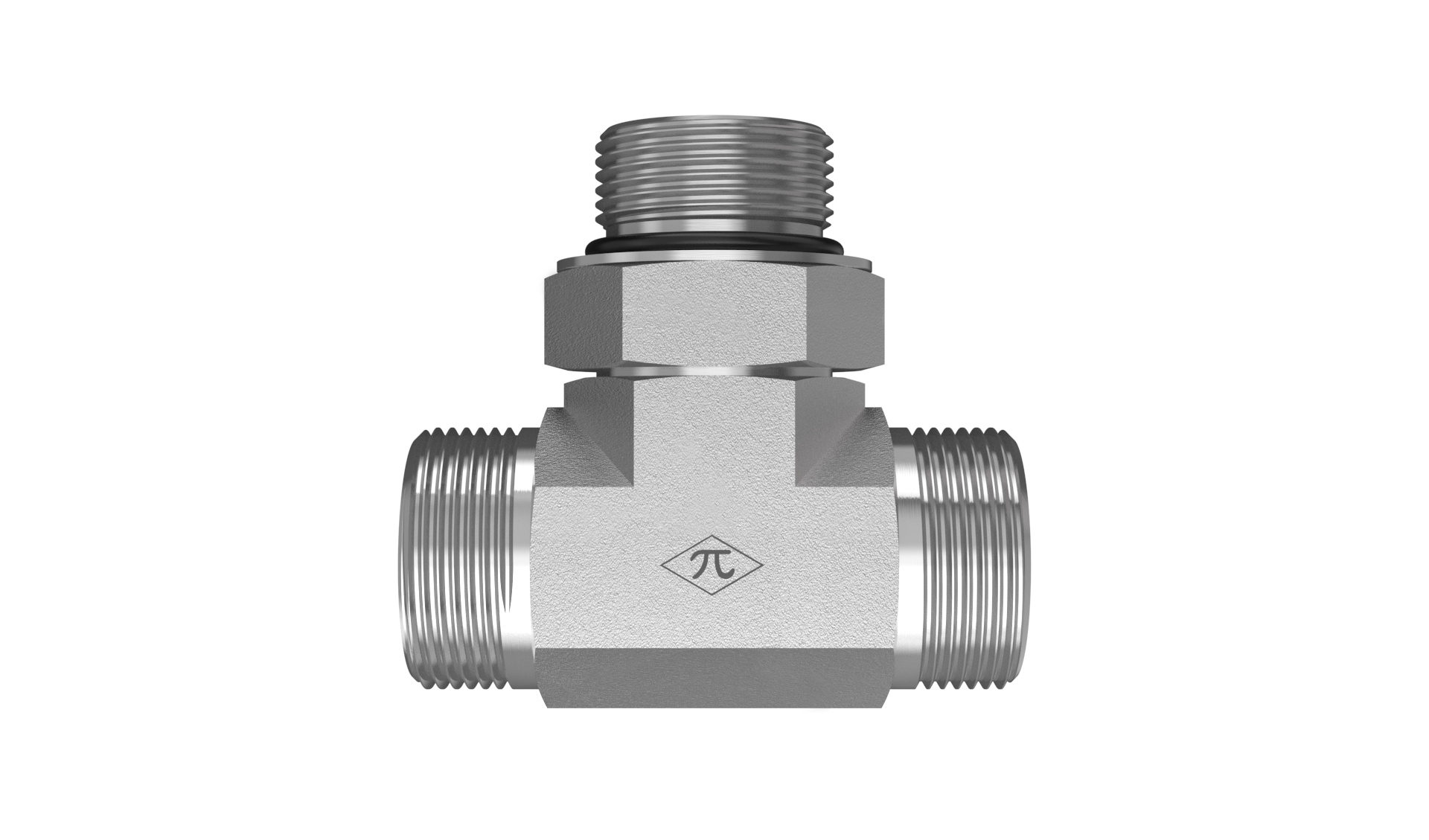

FS6803-16-16-16-NWO-FG-VITON

1" Male ORFS x 1" Male ORFS x 1-5/16-12 Male Adjustable ORB

FS6803-16-16-16-NWO-FG-VITON is a 1" Male ORFS x 1" Male ORFS x 1-5/16-12 Male Adjustable ORB in the FS6803-NWO-FG Series. For installing an ORFS-sealed line tee with an SAE J1926 O-ring boss port outlet.

  • Steel
  • Trivalent Zinc
  • Adjustable Branch Tee
$78.40
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection B
TypeMale ORFS
Tube OD1"
StandardSAE J1453 - Class 2A Thread
Thread Type1-7/16-12 UN
Connection C
TypeMale Adjustable ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-7/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Branch Tee
Weight1.53 lb
Cross References
AeroquipFF1861T1616-213
Parker16 S5OLO-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
