HGW HYDRAULICS

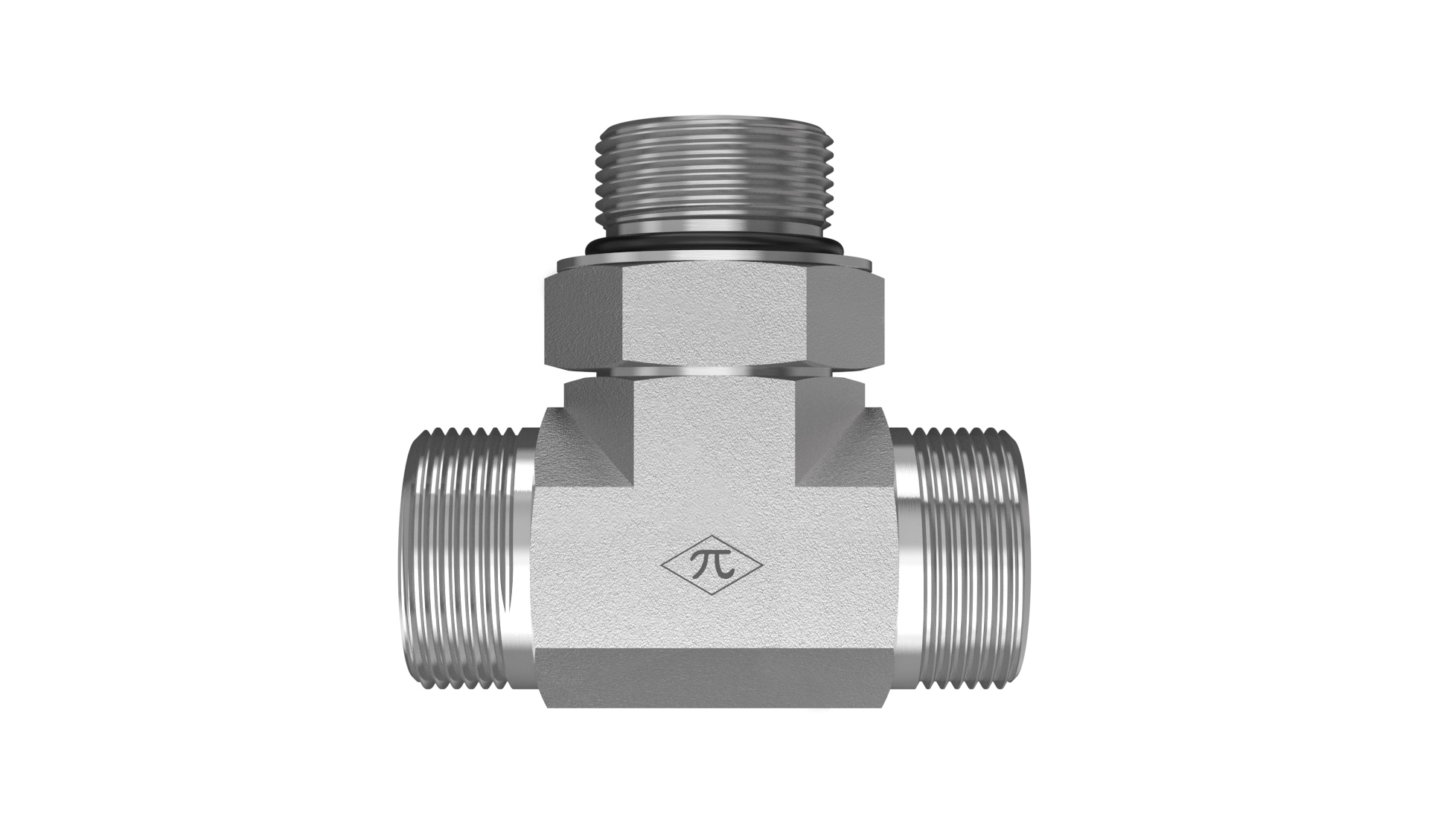

FS6803-24-24-24-NWO-FG

1-1/2" Male ORFS x 1-1/2" Male ORFS x 1-7/8-12 Male Adjustable ORB

FS6803-24-24-24-NWO-FG is a 1-1/2" Male ORFS x 1-1/2" Male ORFS x 1-7/8-12 Male Adjustable ORB in the FS6803-NWO-FG Series. For installing an ORFS-sealed line tee with an SAE J1926 O-ring boss port outlet.

  • Steel
  • Trivalent Zinc
  • Adjustable Branch Tee
$263.25
(0) Write a Review

Product Details

Connection A
TypeMale ORFS
Tube OD1-1/2"
StandardSAE J1453 - Class 2A Thread
Connection B
TypeMale ORFS
Tube OD1-1/2"
StandardSAE J1453 - Class 2A Thread
Connection C
TypeMale Adjustable ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Branch Tee
Weight2.93 lb
Cross References
AeroquipFF1861T2424S
Parker24 S5OLO-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
