HGW HYDRAULICS

FS6809-04-04-NWO-FG

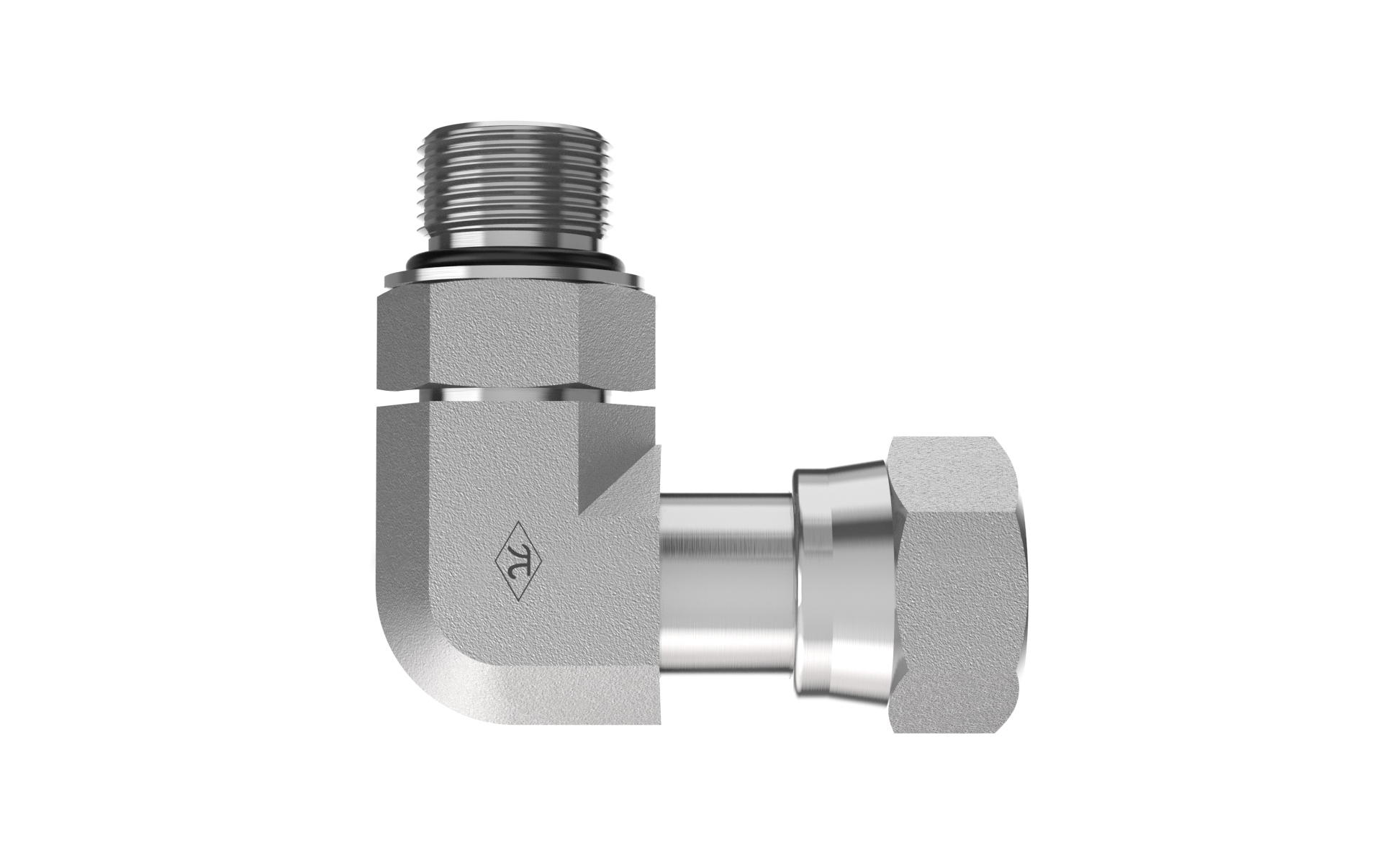

7/16-20 Male Adjustable O-Ring Boss x 1/4" Female ORFS Swivel

FS6809-04-04-NWO-FG is a 7/16-20 Male Adjustable O-Ring Boss x 1/4" Female ORFS Swivel in the FS6809-NWO-FG Series. For connecting an O-ring boss port to a ORFS-sealed tubes or lines at a 90° angle.

  • Steel
  • Trivalent Zinc
  • Adjustable Swivel Elbow
$3.72
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable O-Ring Boss
Port Size7/16-20
StandardSAE J1453
Thread Type9/16-18 UNF
Connection B
TypeFemale ORFS Swivel
Tube OD1/4"
StandardSAE J1453 - O-Ring Face Seal Swivel
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Swivel Elbow
Weight0.15 lb
Cross References
AeroquipFF2052T0404S
Parker4 AOEL6-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
