HGW HYDRAULICS

FS6809-06-06-NWO-FG

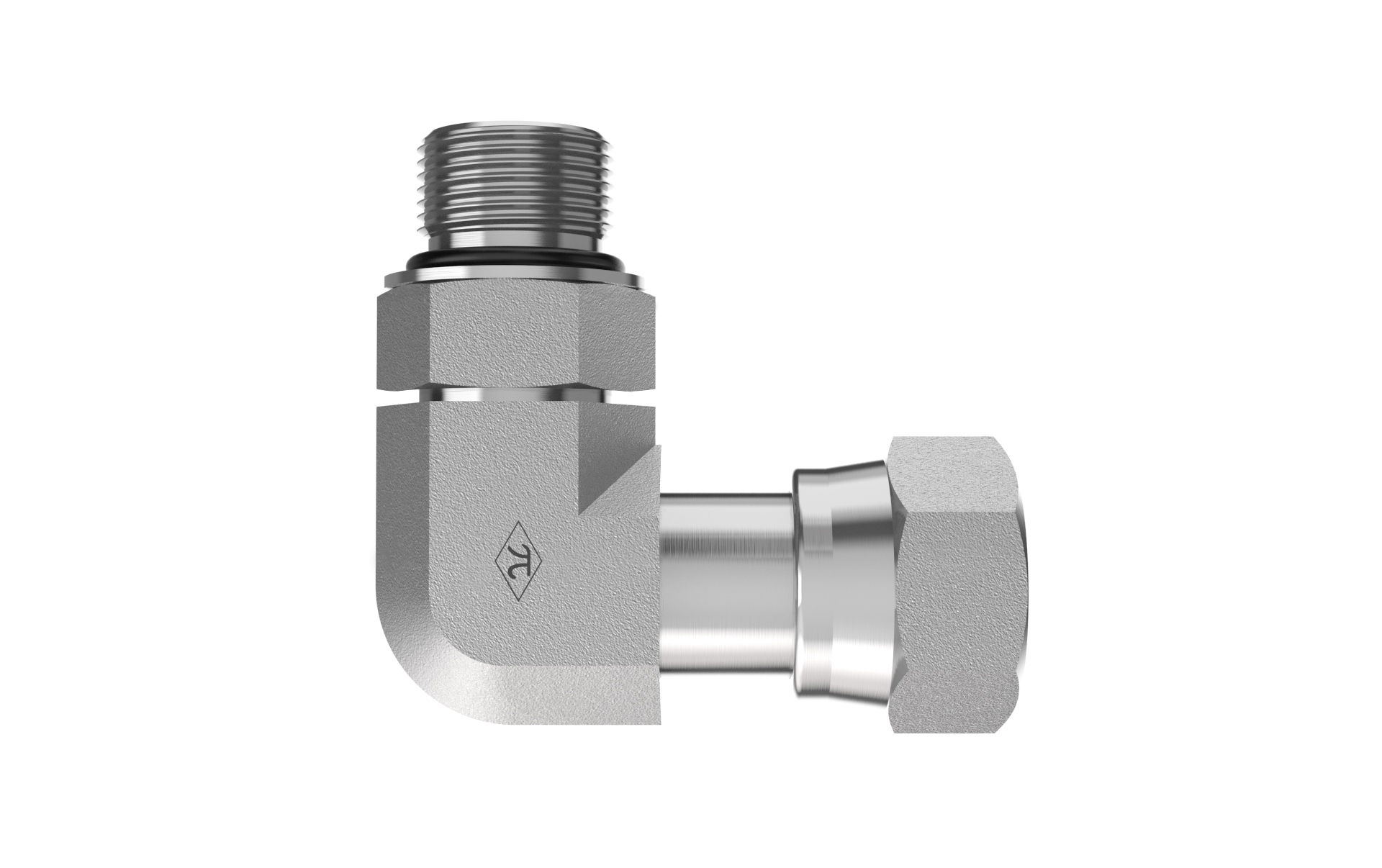

9/16-18 Male Adjustable O-Ring Boss x 3/8" Female ORFS Swivel

FS6809-06-06-NWO-FG is a 9/16-18 Male Adjustable O-Ring Boss x 3/8" Female ORFS Swivel in the FS6809-NWO-FG Series. For connecting an O-ring boss port to a ORFS-sealed tubes or lines at a 90° angle.

  • Steel
  • Trivalent Zinc
  • Adjustable Swivel Elbow
$6.43
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable O-Ring Boss
Port Size9/16-18
StandardSAE J1453
Thread Type11/16-16 UNF
Connection B
TypeFemale ORFS Swivel
Tube OD3/8"
StandardSAE J1453 - O-Ring Face Seal Swivel
Thread Type11/16-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Swivel Elbow
Weight0.26 lb
Cross References
AeroquipFF2052T0606S
Parker6 AOEL6-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
