HGW HYDRAULICS

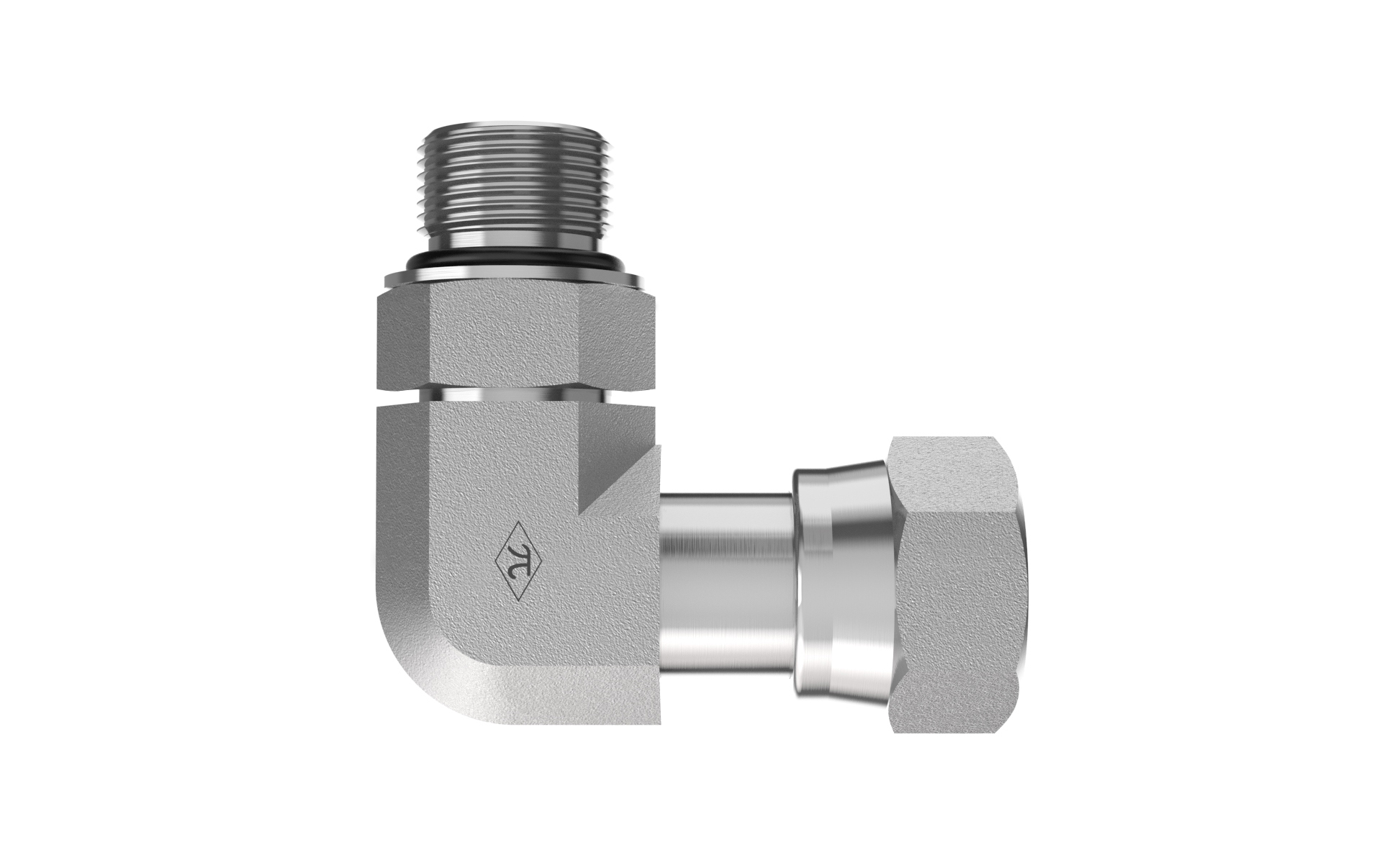

FS6809-16-16-NWO-FG-VITON

1-5/16-12 Male Adjustable O-Ring Boss x 1" Female ORFS Swivel

FS6809-16-16-NWO-FG-VITON is a 1-5/16-12 Male Adjustable O-Ring Boss x 1" Female ORFS Swivel in the FS6809-NWO-FG Series. For connecting an O-ring boss port to a ORFS-sealed tubes or lines at a 90° angle.

  • Steel
  • Trivalent Zinc
  • Adjustable Swivel Elbow
$60.43
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable O-Ring Boss
Port Size1-5/16-12
StandardSAE J1453
Thread Type1-7/16-12 UN
Connection B
TypeFemale ORFS Swivel
Tube OD1"
StandardSAE J1453 - O-Ring Face Seal Swivel
Thread Type1-7/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Swivel Elbow
Weight1.53 lb
Cross References
Parker16 AOEL6-S FKM

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
