HGW HYDRAULICS

FS6809-20-20-NWO-FG

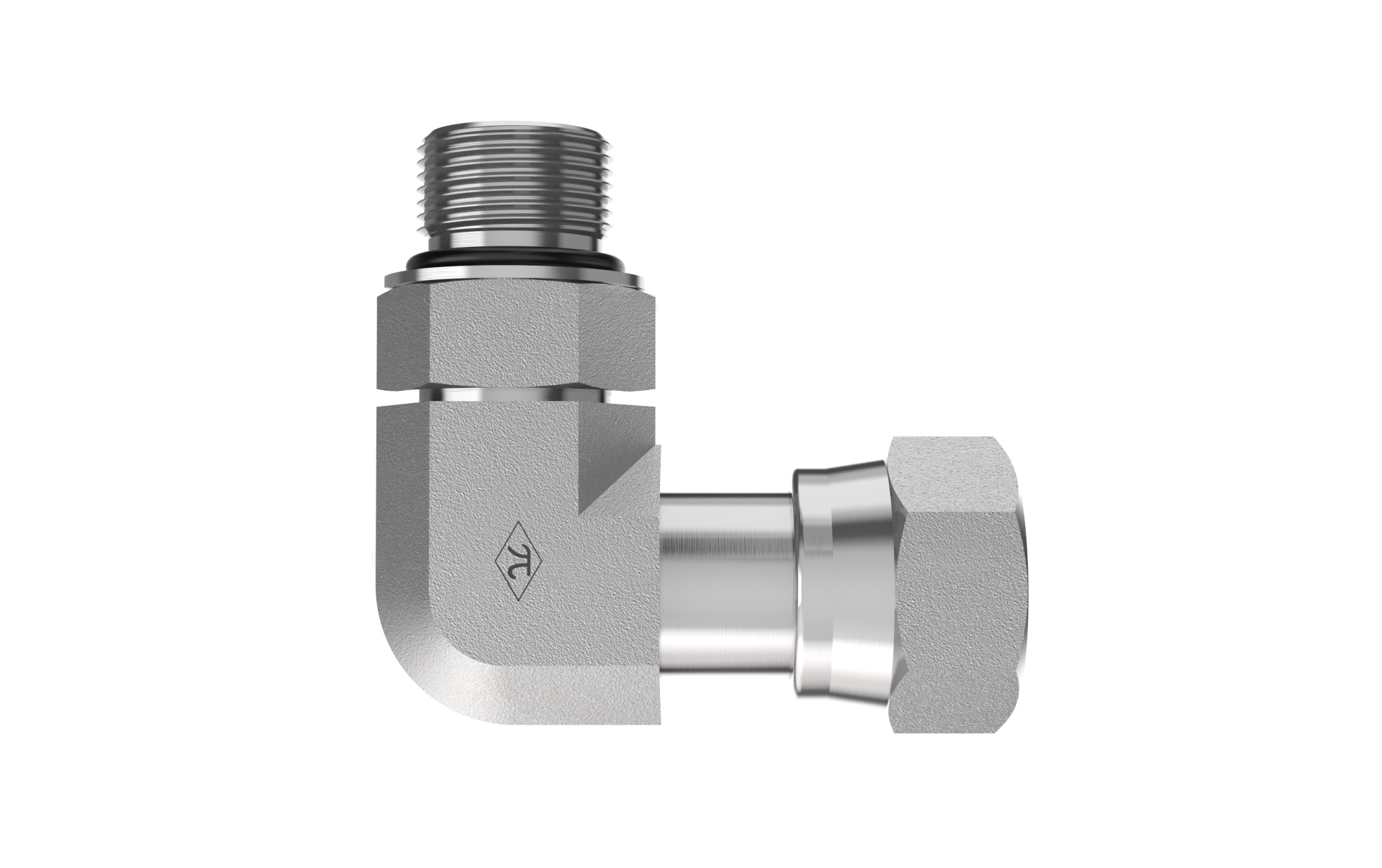

1-5/8-12 Male Adjustable O-Ring Boss x 1-1/4" Female ORFS Swivel

FS6809-20-20-NWO-FG is a 1-5/8-12 Male Adjustable O-Ring Boss x 1-1/4" Female ORFS Swivel in the FS6809-NWO-FG Series. For connecting an O-ring boss port to a ORFS-sealed tubes or lines at a 90° angle.

  • Steel
  • Trivalent Zinc
  • Adjustable Swivel Elbow
$102.89
(0) Write a Review

Product Details

Connection A
TypeMale Adjustable O-Ring Boss
Port Size1-5/8-12
StandardSAE J1453
Thread Type1-11/16-12 UN
Connection B
TypeFemale ORFS Swivel
Tube OD1-1/4"
StandardSAE J1453 - O-Ring Face Seal Swivel
Thread Type1-11/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdjustable Swivel Elbow
Weight2.05 lb
Cross References
Parker20 AOEL6-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
