HGW HYDRAULICS

FS7202-06-04-NWO-FG

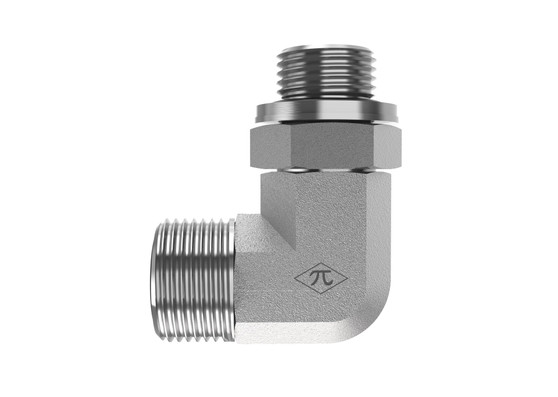

3/8" Male ORFS x 1/4" Male BSPP Adjustable ORR

FS7202-06-04-NWO-FG is a 3/8" Male ORFS x 1/4" Male BSPP Adjustable ORR in the FS7202-NWO-FG-ORR Series. FS7202-NWO-FG-ORR connects a male ORFS tube end to a male BSPP adjustable ORR port in a 90-degree elbow for SAE J1453 to ISO 1179.

  • Steel
  • Trivalent Zinc
  • Male Adjustable Elbow
$12.08
(0) Write a Review
SKU:
FS7202-06-04-NWO-FG

Product Details

Connection A
TypeMale ORFS
Tube OD3/8"
StandardSAE J1453 - Class 2A Thread
Thread Type11/16-16 UNF
Connection B
TypeMale BSPP Adjustable ORR
Pipe Size1/4"
StandardISO 1179
Thread Type11/16-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adjustable Elbow
Weight0.21 lb
Cross References
AeroquipFF2484T-0604S
Parker6C4OMLOS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
