HGW HYDRAULICS

FS7202-12-16-NWO-FG

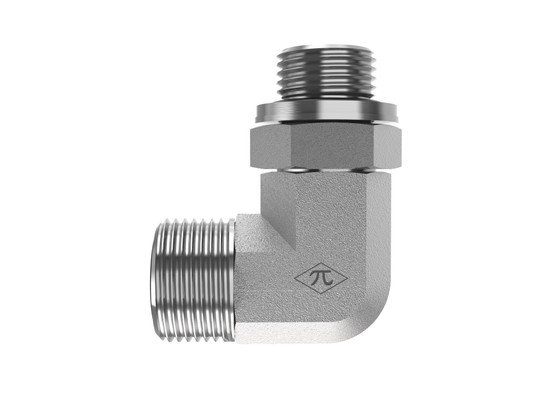

3/4" Male ORFS x 1" Male BSPP Adjustable ORR

FS7202-12-16-NWO-FG is a 3/4" Male ORFS x 1" Male BSPP Adjustable ORR in the FS7202-NWO-FG-ORR Series. FS7202-NWO-FG-ORR connects a male ORFS tube end to a male BSPP adjustable ORR port in a 90-degree elbow for SAE J1453 to ISO 1179 transitions.

  • Steel
  • Trivalent Zinc
  • Male Adjustable Elbow
$126.72
(0) Write a Review
SKU:
FS7202-12-16-NWO-FG

Product Details

Connection A
TypeMale ORFS
Tube OD3/4"
StandardSAE J1453 - Class 2A Thread
Thread Type1-3/16-12 UN
Connection B
TypeMale BSPP Adjustable ORR
Pipe Size1"
StandardISO 1179
Thread Type1-3/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adjustable Elbow
Weight1.19 lb
Cross References
AeroquipFF2484T-1216S
Parker12-16C4OMLOS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
